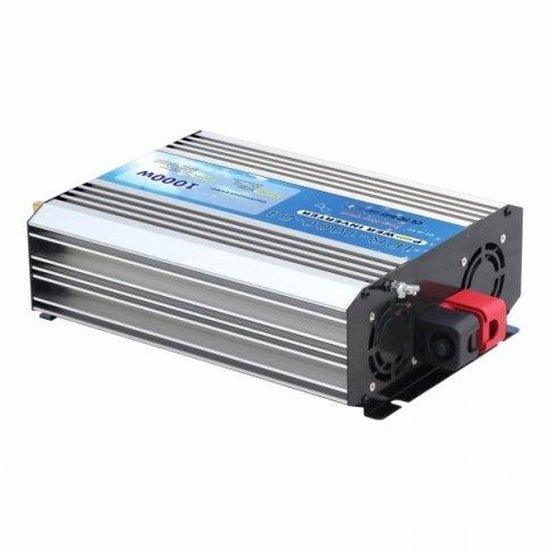

1000W 24V pure sine wave power inverter with On/Off remote control
Art: IPR-1000-24
Description
PHOTONIC UNIVERSE ▶ PURE SINE SERIES
1000W 24V Pure Sine Wave Power Inverter
Reliable Off-Grid Power | Wireless Remote Control | Model: IPR-1000-24
The Photonic Universe 1000W 24V Pure Sine Wave Power Inverter (IPR-1000-24) is an essential solution for converting 24V DC battery power into stable 230-240V AC mains electricity. Designed for off-grid locations, mobile applications, and backup power systems, this inverter delivers a continuous output of 1000W and can handle peak loads up to 2000W, making it suitable for a wide range of household appliances and sensitive electronics.
Its pure sine wave output is nearly identical to standard grid power, ensuring compatibility and efficient operation for devices with electric motors and delicate circuitry. The inverter includes crucial protection features for safety and comes with a convenient wireless On/Off remote control, offering flexibility in system management.
KEY SPECIFICATION: 1000W Continuous Power, 2000W Peak, 24V DC Input, 230-240V AC Pure Sine Wave Output.
Key Features
| ▶ Pure Sine Wave Output — Safely powers sensitive electronics and appliances with motors. |
| ▶ 1000W Continuous Power — Provides stable power for a wide range of devices. |
| ▶ 2000W Peak Power — Handles high startup demands from certain appliances. |
| ▶ 24V DC Input — Optimised for common 24V battery systems, offering system stability. |
| ▶ Wireless Remote Control — Conveniently switch the inverter On/Off from up to 50m away. |
| ▶ Integrated USB Port — Charge USB-compatible devices directly from the inverter. |
| ▶ Comprehensive Protections — Built-in safeguards for reliable and safe operation. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IPR-1000-24 |
| Continuous Power | 1000W |
| Peak Power (Surge) | 2000W |
| DC Input Voltage | 24V (20-30V DC) |
| AC Output Voltage | 230-240V AC |
| Output Frequency | 50Hz |
| Output Waveform | Pure Sine Wave (<3% THD) |
| Peak Efficiency | 90% |
| USB Output | 2A Rated |
| Remote Control Range | Approx. 50m |
| Dimensions (L x W x H) | 325 x 215 x 90 mm |
| Weight | 2.7 kg |
Operating & Power Guidance
This Photonic Universe pure sine wave inverter is designed to provide reliable AC power from a 24V DC battery source. It outputs a clean 230-240V AC at 50Hz, suitable for the majority of UK household appliances.
Ensure the total continuous power consumption of all connected appliances does not exceed 1000W. For appliances with electric motors (e.g., fridges, pumps), consider their higher startup (surge) power requirements, which this inverter supports up to 2000W.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Cabins & Sheds | Powering lights, small appliances, and electronics in remote locations. |
| Mobile Homes & Caravans | Running essential devices like TVs, fridges, and charging laptops on the go. |
| Backup Power Systems | Providing emergency power for critical devices during mains electricity outages. |
| Remote Workshops | Operating tools and equipment where grid power is unavailable. |
Built-In Protection Functions
The Photonic Universe 1000W 24V Pure Sine Wave Inverter incorporates multiple safety features to protect both the inverter and your connected appliances. These include automatic shutdown for over-discharge • overload • overheating • and short-circuit conditions. Additional safeguards include low battery alarm and shutdown, and high voltage shutdown, ensuring stable and reliable operation.
Common Questions
What is a pure sine wave inverter used for?
A pure sine wave inverter produces AC power that is almost identical to the electricity supplied by utility companies. This makes it ideal for powering sensitive electronics, medical equipment, and appliances with electric motors (like refrigerators or microwaves), which may not operate correctly or could be damaged by modified sine wave inverters.
How do I connect this inverter to my battery system?
The inverter connects directly to a 24V battery or battery bank using the supplied DC cables. Ensure correct polarity (positive to positive, negative to negative) to prevent damage. It is recommended to connect the inverter directly to the battery terminals for optimal performance and safety.
What appliances can this 1000W inverter power?
This 1000W inverter can power a variety of household appliances, including laptops, mobile phone chargers, LED lights, TVs, radios, and small kitchen appliances, provided their total continuous power consumption does not exceed 1000W. It can also handle appliances with higher startup power requirements up to 2000W.
What is the range of the remote control?
The wireless On/Off remote control for this inverter has an approximate operating radius of up to 50 metres, offering convenient control from a distance.
Installation Notes
- Ensure the inverter is installed in a dry, well-ventilated area, away from direct sunlight, moisture, and flammable materials.
- Maintain at least 20cm clearance around the inverter for proper airflow and cooling.
- All wiring should be carried out by an appropriately qualified person, adhering to relevant electrical safety standards.
- Connect the inverter directly to your 24V battery bank using appropriately sized cables to minimise voltage drop.
- This is an off-grid inverter; never connect its AC output to the mains grid.
Before You Buy
- Verify your battery system is 24V DC to ensure compatibility with this inverter.
- Calculate the total continuous power (Watts) of all appliances you intend to run simultaneously.
- Consider the surge power requirements for motor-driven appliances (e.g., pumps, fridges) to ensure the inverter can handle their startup.
- Review the user manual for detailed installation, operation, and safety guidelines.
- For any technical assistance or questions, please contact Solarika for support.
Please verify all specifications and compatibility requirements before purchase. This product is covered by a 1-year manufacturer warranty.
