Solarika.co.uk

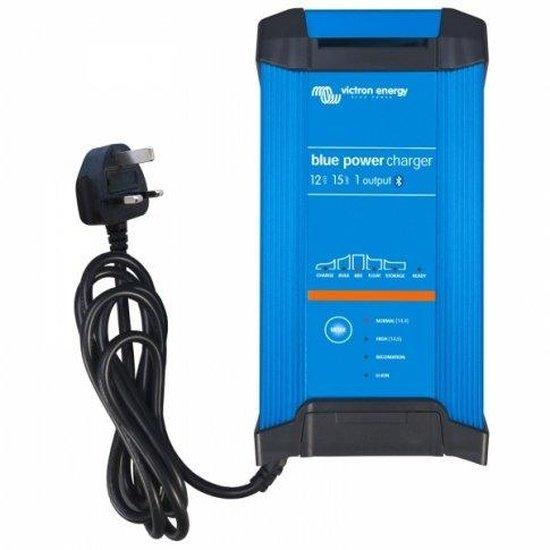

Victron 15A 12V Blue Smart IP22 mains battery charger with Bluetooth connectivity
Art: VBC1215
Description
Victron Blue Smart Charger Series
Victron 15A 12V Blue Smart IP22 Mains Battery Charger
Adaptive 6-Stage Charging | Bluetooth Connectivity | UK 3-Pin Plug
The Victron 15A 12V Blue Smart IP22 Mains Battery Charger is an advanced solution for safely and efficiently charging 12V batteries from a 220-240V AC mains power source. Engineered for optimal battery health and longevity, this charger features a highly efficient design and an adaptive 6-stage charging process. It is suitable for a wide range of 12V battery types, including Lithium, AGM, Gel, and Wet cell batteries, making it a versatile choice for various applications.
With integrated Bluetooth connectivity, users can remotely monitor charging status, adjust settings, and perform firmware updates via the free VictronConnect App on a mobile device. This intelligent charger is designed for unattended operation, incorporating multiple safety features to protect both the battery and the charger itself.
SMART CONNECTIVITY: Monitor and configure your charger remotely using the VictronConnect App via Bluetooth.
Key Features
| ▶ Adaptive 6-Stage Charging — Optimises the charging process for various battery types and usage patterns. |
| ▶ Bluetooth Smart Connectivity — Monitor, configure, and update via the VictronConnect App on your smartphone or tablet. |
| ▶ High Efficiency (93%) — Generates less heat and reduces power consumption, especially in standby mode (0.5W). |
| ▶ Multi-Battery Compatibility — Charges Lithium (LiFePO4), AGM, Gel, and Wet cell 12V batteries. |
| ▶ Dead Battery Recovery — Can initiate charging even if a battery is discharged to 0V. |
| ▶ Silent Night/Low Mode — Reduces output current by 50% for quiet operation in sensitive environments. |
| ▶ Storage Mode — Minimises gassing and corrosion, preventing early battery failure during periods of inactivity. |
| ▶ Power Supply Function — Provides a direct 12V power supply to loads even without a battery connected. |
| ▶ Integrated Temperature Sensor — Automatically compensates charging voltage for lead-acid batteries based on ambient temperature. |
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range (AC) | 180V - 265V |
| DC Output Current (Normal Mode) | 15A |
| DC Output Current (Night/Low Mode) | 7.5A |
| DC Output Voltage | 12V |
| Minimum Battery Capacity (Normal) | 30Ah |
| Minimum Battery Capacity (Night/Low) | 15Ah |
| Efficiency | 93% |
| Standby Power Consumption | 0.5W |
| Operating Temperature Range | -20°C to 50°C |
| Protection Rating | IP22 (Indoor Use) |
| Dimensions (H x W x D) | 235 x 108 x 65 mm |
| Weight | 1.3 kg |
Charging & Battery Modes
| Mode | Description & Benefit |
|---|---|
| Adaptive 6-Stage | Includes Test, Bulk, Absorption, Recondition, Float, and Storage stages to ensure optimal battery health and charge. |
| Lithium Mode | Dedicated charging algorithm (Bulk – Absorption – Float) specifically tailored for Li-ion batteries. |
| Recondition Mode | Helps to recover deeply discharged lead-acid batteries and prevent sulfation. |
| Storage Mode | Reduces float voltage to minimise gassing and corrosion, with weekly equalisation to prevent stratification. |
| Power Supply Mode | Functions as a stable 12V power supply for loads, even without a battery connected. |
Typical Applications
| Application | Description |
|---|---|
| Automotive & Marine | Ideal for charging 12V batteries in cars, motorcycles, boats, and camper-vans, ensuring readiness for use. |
| Off-Grid & Backup Systems | Maintains charge for 12V battery banks in small off-grid setups or as a reliable backup power source. |
| Workshop & Garage Use | Provides consistent and safe charging for various 12V batteries used in workshop equipment or vehicles. |
| Seasonal Vehicle Storage | Storage Mode prevents battery degradation during long periods of inactivity, such as winter storage for leisure vehicles. |
Built-In Protection Functions
The Victron Blue Smart IP22 charger incorporates comprehensive safety features for reliable, unattended operation. These include protection against DC short circuit, overheating (output current reduces as temperature increases up to 50°C), overcharging, and reverse polarity of the battery. Its IP22 rating ensures protection against solid objects over 12.5mm and vertically dripping water, making it suitable for indoor use.
Common Questions
What types of batteries can this charger charge?
This Victron Blue Smart IP22 charger is compatible with 12V Lithium (LiFePO4), AGM, Gel, and Wet cell lead-acid batteries. It features a dedicated charging mode for Lithium batteries.
How does the Bluetooth connectivity work?
The charger has built-in Bluetooth Smart technology. You can download the free VictronConnect App to your smartphone or tablet to monitor battery voltage, charge current, charging cycle status, change settings, and update firmware remotely.
Can this charger be left connected to a battery indefinitely?
Yes, the charger is designed for safe, unattended charging. Its adaptive 6-stage algorithm and Storage Mode ensure optimal battery maintenance, preventing overcharging and extending battery life when left connected for long periods.
What is the 'Night' or 'Low' mode?
In 'Night' or 'Low' mode, the charger's output current is reduced to 50% of its nominal output (7.5A), making it operate silently. This is useful for charging in noise-sensitive environments.
Installation Notes
- Ensure the charger is placed in a well-ventilated, dry indoor environment due to its IP22 rating.
- Connect the charger to a standard UK 3-pin mains socket (220-240V AC).
- Always connect the battery terminals correctly: positive to positive, negative to negative.
- For optimal performance and safety, refer to the detailed user manual supplied with the product.
- Avoid covering the charger during operation to prevent overheating.
Before You Buy
- Verify your battery voltage is 12V and its capacity is suitable for a 15A charger (minimum 30Ah for normal mode).
- Confirm the battery type (Lithium, AGM, Gel, Wet cell) to ensure correct charging mode selection.
- Consider the installation environment; this IP22 rated charger is for indoor use only.
- Ensure you have a Bluetooth-enabled device (smartphone/tablet) to fully utilise the VictronConnect App features.
- For parallel battery banks, ensure all batteries are of the same type, capacity, and age for balanced charging.
Please verify all specifications and compatibility requirements with your specific system before purchase. This product is covered by a 5-year manufacturer warranty.
