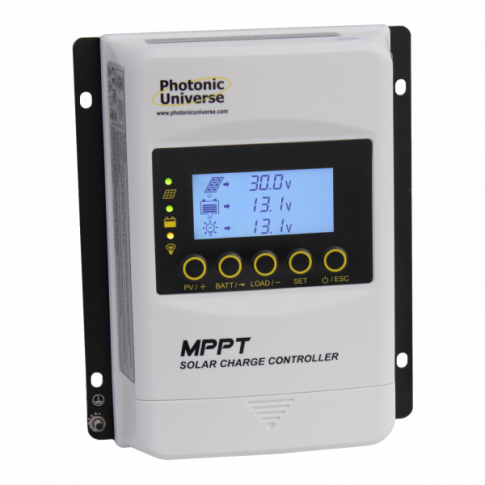

20A MPPT Solar Charge Controller with Built-in Bluetooth
Photonic Universe XTR2210N | 12V/24V Auto | Up to 100V PV Input
The Photonic Universe XTR2210N is a high-efficiency 20A MPPT solar charge controller designed to optimise energy harvest from your solar panels. This advanced controller supports solar panel arrays up to 260W for 12V battery systems and 520W for 24V battery systems, accepting a wide solar input voltage range of up to 100V.
Featuring built-in Bluetooth, the XTR2210N allows for convenient monitoring and control via a mobile app, making it an ideal solution for off-grid solar setups, RVs, caravans, boats, and small home systems in the UK. Its robust design ensures comprehensive protection and efficient power management for various battery types, including lithium.
SYSTEM COMPATIBILITY: Automatically detects 12V or 24V battery systems. Compatible with Sealed, Flooded, Gel, and LiFePO4 batteries.
Key Features
| ▶ High-Efficiency MPPT — Maximises solar energy capture, even in varying conditions. |
| ▶ 20A Charge & Discharge — Suitable for moderate solar power systems. |
| ▶ Built-in Bluetooth — Wireless monitoring and control via mobile app. |
| ▶ Wide PV Input (100V) — Allows for flexible solar panel configurations. |
| ▶ 12V/24V Auto Recognition — Simplifies setup for common battery voltages. |
| ▶ Lithium Battery Compatible — Dedicated charging modes for LiFePO4. |
| ▶ Comprehensive Protection — Safeguards against common electrical faults. |
| ▶ LCD Display & Buttons — Real-time data and manual setting adjustments. |
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Charge/Discharge Current | 20A |
| System Voltage | 12V/24V Auto |
| Max. PV Input Voltage | 100V |
| Max. PV Input Power (12V) | 260W |
| Max. PV Input Power (24V) | 520W |
| Communication Port | RS485/RJ45 |
| Operating Temperature | -25°C to +50°C |
| Dimensions (L x W x H) | 217 x 158 x 56.5 mm |
| Weight | 0.97 kg |
| Grounding | Negative Common |
Charging & Battery Modes
The Photonic Universe XTR2210N offers versatile charging capabilities and battery management features to suit a wide range of solar applications.
| Feature | Description |
|---|---|
| Battery Type Selection | Easily select between Sealed, Flooded, Gel, and LiFePO4 battery types via LCD, app, or PC software. |
| User-Defined Mode | Customise charging parameters for unique battery chemistries or specific requirements. |
| Advanced Monitoring | View real-time data, historical logs, min/max voltages, and diagnostic information. |
| Load Control | Programmable load settings, including timers for connected DC appliances. |
| Temperature Compensation | Built-in temperature sensor for optimised charging; optional remote sensor port available. |
Typical Applications
| Application Area | Description |
|---|---|
| Off-Grid Cabins & Sheds | Efficiently charges batteries for lighting, small appliances, and power tools in remote locations. |
| RVs, Caravans & Motorhomes | Maintains leisure batteries, providing reliable power for mobile living and travel. |
| Marine Vessels | Charges boat batteries for navigation, communication, and onboard electronics. |
| Small Backup Power Systems | Ideal for maintaining battery banks for critical loads during power outages. |
Built-In Protection Functions
The Photonic Universe XTR2210N is equipped with a comprehensive suite of electronic protection features to ensure the safety and longevity of your solar power system. These include safeguards against reverse polarity • over-charging • deep battery discharge • solar panel over-voltage • system overloads • short circuits • and reverse current flow to solar panels at night. The controller also features smart self-diagnostics for easy troubleshooting.
Common Questions
What is MPPT technology?
MPPT (Maximum Power Point Tracking) technology allows the charge controller to find the optimal voltage and current at which solar panels produce maximum power. This results in significantly more energy harvested compared to traditional PWM controllers, especially in varying weather conditions or when panel voltage is higher than battery voltage.
Can I use this controller with lithium batteries?
Yes, the Photonic Universe XTR2210N is fully compatible with LiFePO4 (lithium iron phosphate) batteries. It offers specific charging modes for lithium batteries, which can be selected via the LCD display, mobile app, or PC software. A "User-Defined" option is also available for custom settings.
How do I monitor my solar system with this controller?
The controller features built-in Bluetooth for wireless monitoring and parameter adjustment via a free mobile app. Additionally, it has an LCD display for real-time data and an RS485/RJ45 port for connection to an optional remote meter (MT52), Wi-Fi module, or PC software for more detailed insights and control.
What wire size should I use for installation?
The controller features three pairs of terminals (for solar panel, battery, and load) suitable for wires up to 16mm². Always ensure that the wire gauge selected is appropriate for the current and length of the run to minimise voltage drop and ensure safety.
Installation Notes
- Always connect the battery to the charge controller first before connecting solar panels.
- Ensure correct polarity for all connections (solar, battery, load) to prevent damage.
- Mount the controller in a cool, dry, and well-ventilated area, away from direct sunlight and heat sources.
- Use appropriate circuit breakers or fuses on both the solar panel and battery lines for safety.
- Refer to the detailed user manual for specific wiring diagrams and installation instructions.
Before You Buy
- Verify your battery system voltage (12V or 24V) matches the controller's auto-detection range.
- Confirm your total solar panel power (in Watts) does not exceed the controller's maximum input (260W for 12V, 520W for 24V).
- Check that your solar panel's open-circuit voltage (Voc) does not exceed 100V.
- Consider your battery type and ensure it is compatible with the controller's pre-set or user-defined charging modes.
- Assess your load requirements; the controller supports a 20A discharge current for DC loads.
Please verify all specifications and compatibility requirements with your existing solar system components before purchase. Product specifications are subject to change by the manufacturer.
