Iconica 5000W 48V hybrid pure sine wave inverter with 4000W solar input, 80A 500V MPPT solar controller
Art: IC3-BM5000-48
Description
Iconica Hybrid Series

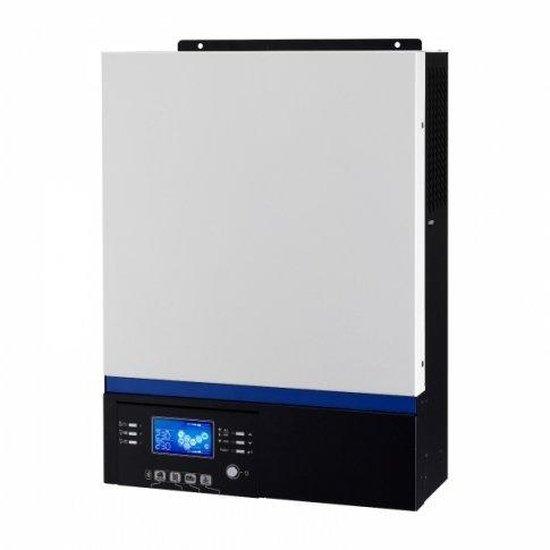

Iconica 5000W 48V Hybrid Pure Sine Wave Inverter
SKU: IC3-BM5000-48 | 80A MPPT Solar | 60A Mains Charger | Battery-Free Operation
The Iconica 5000W 48V Hybrid Pure Sine Wave Inverter (SKU: IC3-BM5000-48) is an advanced all-in-one power solution designed for robust off-grid, hybrid, and backup energy systems. Manufactured by Photonic Universe, this intelligent unit seamlessly integrates a powerful 5000W pure sine wave inverter, an efficient 80A MPPT solar charge controller, and a reliable 60A smart mains battery charger into a single, compact device.
Ideal for UK homeowners, off-grid properties, and small businesses, this Iconica inverter can draw power from solar panels, mains electricity, a generator, or a battery bank, offering flexible and uninterrupted power supply. A key feature is its ability to power AC appliances directly from solar panels, even without a connected battery, providing exceptional versatility for various applications.
IMPORTANT NOTE: This 48V hybrid inverter supports battery-free operation, allowing direct power to AC loads from solar panels.
Key Features
| ▶ 5000W Pure Sine Wave Output — Delivers clean, stable power for sensitive electronics and motor-driven appliances. |
| ▶ 80A MPPT Solar Charge Controller — Maximises energy harvest from solar panels with up to 98% efficiency. |
| ▶ 60A Smart Mains Battery Charger — Provides safe and efficient charging from a generator or grid connection. |
| ▶ Battery-Free Operation — Power AC loads directly from solar panels, even without a battery bank. |
| ▶ Uninterrupted Power Supply (UPS) — Ensures seamless power backup during grid outages with rapid transfer time. |

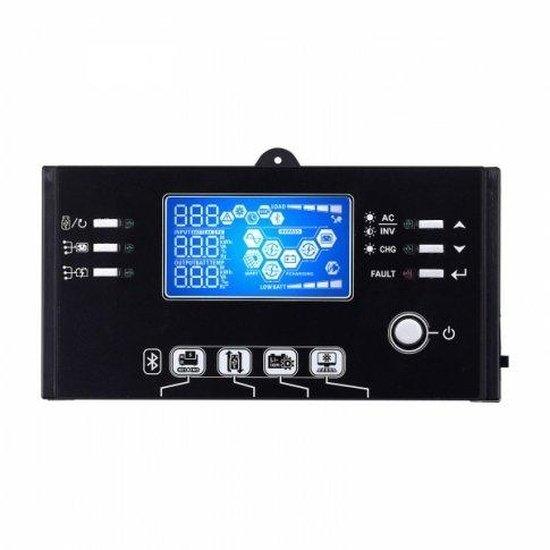

| ▶ Inbuilt Bluetooth Connectivity — Monitor and control your system remotely via the Watchpower mobile app (Android). |
| ▶ Parallel Capability — Expand your system up to 8 units for increased power output or 3-phase operation (kit sold separately). |
| ▶ Customisable Settings — Personalise operating parameters for optimal performance and system integration. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 48V DC |
| Continuous Power Output | 5000W / 5000VA |
| Surge Power (Peak) | 10,000VA |
| Max. Solar Input Power | 4000W |
| Max. Open Circuit Solar Voltage | 500V DC |
| MPPT Operating Voltage Range | 120V - 450V DC |
| Max. Solar Charging Current | 80A |
| Max. Mains AC Charging Current | 60A |
| Output Frequency | 50Hz |
| Peak Efficiency | 93% |
| Operating Temperature | -10°C to 50°C |
| Dimensions (H x W x D) | 44 x 30 x 11.5 cm |
| Weight | 10 kg |
Charging & Output Modes
The Iconica 5000W 48V Hybrid Inverter offers flexible charging and output modes to suit diverse energy requirements:
| Mode | Description |
|---|---|
| Solar Priority | Prioritises solar power for loads and battery charging, reducing reliance on grid or generator. |
| Utility Priority (UPS) | Maintains critical loads from the grid, switching to battery/solar backup instantly during outages. |
| SBU Priority | Solar first, then Battery, then Utility (mains) as a last resort for loads. |
| Battery-Free Mode | Powers AC appliances directly from solar panels without needing a battery bank. |
The inverter is compatible with 48V flooded, AGM, and GEL lead-acid battery banks, offering pre-programmed charging modes and a user-defined setting for other lead-acid battery types.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides reliable primary power for remote properties without grid access. |
| Backup Power Systems | Ensures continuous power for critical loads during mains electricity interruptions. |
| Mobile & Marine Installations | Suitable for yachts, narrowboats, and large campervans requiring robust AC power. |
| Workshops & Garages | Powers tools and equipment where grid power is unstable or unavailable. |
Built-In Protection Functions
The Iconica 5000W 48V Hybrid Inverter incorporates multiple safety features to protect your system and appliances. These include comprehensive protection against overcharge • overheating • reverse current • short circuit • overload • and over-voltage. The pure sine wave output ensures compatibility and safe operation for a wide range of sensitive electronics.
Common Questions
What is the maximum solar input this inverter can handle?
The Iconica 5000W 48V Hybrid Inverter can handle a maximum solar input power of 4000W with a maximum open circuit solar voltage of 500V DC. The MPPT operating voltage range is 120V to 450V DC.
Can this inverter operate without batteries?
Yes, a key feature of this Iconica hybrid inverter is its ability to power AC appliances directly from solar panels without the need for a connected battery bank.
What type of batteries are compatible with this inverter?
This inverter is compatible with 48V flooded, AGM, and GEL lead-acid battery banks. It includes pre-programmed charging modes and a user-defined mode for other 48V lead-acid battery types.
Does it have remote monitoring capabilities?
Yes, the inverter features inbuilt Bluetooth connectivity for remote monitoring via the free Watchpower mobile app (Android). Optional Wi-Fi/3G kits are available for enhanced communication.
Installation Notes
- Install the inverter vertically on a solid, non-combustible surface.
- Ensure adequate air circulation: allow approximately 20 cm clearance to the sides and 50 cm above and below the unit for heat dissipation.
- All wiring should be performed by a qualified professional, adhering to local electrical regulations.
- Verify correct polarity for all battery and solar connections before powering on.
- The solar array must meet the minimum MPPT input voltage of 120V DC to enable solar charging or direct solar operation.
Before You Buy
- Confirm your battery bank is a 48V system to ensure compatibility.
- Calculate your total power requirements (continuous and surge) to ensure the 5000W output is sufficient.
- Consider future expansion needs; this inverter supports parallel operation with up to 8 units (parallel kit sold separately).
- Review the detailed user manual for complete installation and operation guidelines.
- For optimal performance, ensure your solar panel array meets the specified voltage and power input requirements.
Please verify all specifications and compatibility requirements before purchase. Product specifications are subject to change by the manufacturer. This product is covered by a 1-year manufacturer warranty.
