Victron 25A 12V Blue Smart IP65 mains battery charger with Bluetooth connectivity
Art: VBC1225WP
Description
Victron Energy ▶ Blue Smart Series

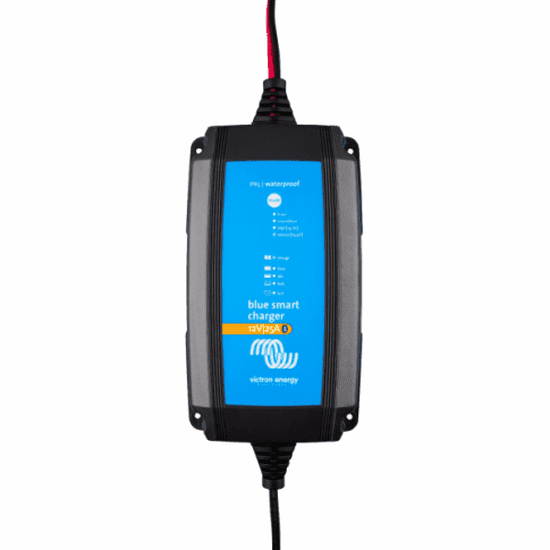

Victron 25A 12V Blue Smart IP65 Mains Battery Charger
Intelligent 7-Stage Charging | Bluetooth Connectivity | IP65 Rated
The Victron 25A 12V Blue Smart IP65 Mains Battery Charger is an advanced, intelligent solution for maintaining and optimising the performance of your 12V batteries. Designed for reliability and ease of use, this 25A charger features built-in Bluetooth connectivity, allowing for remote monitoring and configuration via the VictronConnect App. Its robust IP65 rating ensures it is splash, dust, and chemical resistant, making it suitable for a wide range of environments, from workshops to marine applications.
Utilising an adaptive 7-stage charging algorithm, this Victron charger not only charges batteries efficiently but also extends their lifespan by preventing common issues like sulfation. It supports various 12V battery types, including Lithium (LiFePO4), AGM, Gel, and Wet cell, making it a versatile choice for homeowners, off-grid users, and small businesses seeking dependable battery care.
PRODUCT TYPE: High-efficiency 12V 25A multi-stage battery charger with Bluetooth.
Key Features
| ▶ Adaptive 7-Stage Charging — Optimises battery health and extends lifespan. |
| ▶ Bluetooth Smart Connectivity — Monitor and configure via VictronConnect App. |
| ▶ IP65 Protection Rating — Water, dust, and chemical resistant for harsh environments. |
| ▶ Dead Battery Recovery — Can recharge deeply-discharged batteries from 0V. |
| ▶ Power Supply Function — Can directly power 12V loads without a battery. |
| ▶ Silent Operation — Fanless design ensures quiet performance. |
| ▶ Storage Mode — Prevents battery aging during periods of inactivity. |
| ▶ Temperature Compensation — Adjusts charge voltage for optimal lead-acid charging. |
| ▶ Lithium (LiFePO4) Mode — Dedicated charging algorithm for LiFePO4 batteries. |
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range (AC) | 180V - 265V |
| DC Output Current ('Normal' Mode) | 25A |
| DC Output Current ('Low' Mode) | 10A |
| DC Output Voltage | 12V |
| Efficiency | 94% |
| Standby Power Consumption | 0.5W |
| Operating Temperature Range | -40°C to 50°C |
| Protection Rating | IP65 (Splash & Dust Proof) |
| Dimensions (H x W x D) | 75 x 140 x 240 mm |
| Weight | 1.9 kg |
Charging & Battery Modes
The Victron Blue Smart IP65 Charger offers advanced charging capabilities to ensure optimal battery health and longevity. Its adaptive 7-stage charging process intelligently adjusts to the battery's condition and usage, minimising corrosion and maximising lifespan.
| Mode/Feature | Description |
|---|---|
| Adaptive Charging | Automatically adjusts the charging process based on battery usage, reducing absorption time when a battery is nearly full to prevent overcharging. |
| Storage Mode | Reduces voltage to minimise gassing and corrosion when the battery is not discharged for 24 hours, preventing early failure. |
| LiFePO4 Mode | Dedicated algorithm for Lithium Iron Phosphate batteries, including automatic under-voltage protection reset. |
| Recondition Mode | Can partially repair sulfation in lead-acid batteries by charging at a higher voltage with low current. |
| Low Current Mode | Allows charging smaller capacity batteries safely at 10A, preventing overheating and degradation. |
Typical Applications
| Application | Description |
|---|---|
| Leisure Vehicles | Ideal for charging 12V batteries in caravans, motorhomes, and campervans, ensuring readiness for travel. |
| Marine Vessels | Suitable for boats and yachts, providing reliable charging and maintenance for onboard battery banks. |
| Automotive & Classic Cars | Maintains batteries in cars, motorcycles, and classic vehicles, especially during long periods of storage. |
| Off-Grid & Backup Systems | Can be used as a reliable mains charger for smaller off-grid battery banks or backup power systems. |
Built-In Protection Functions
The Victron Blue Smart IP65 Charger is engineered with comprehensive safety features for worry-free operation. It includes protection against DC short circuits, overheating (output current reduces as temperature increases up to 60°C), overcharging, and reverse polarity. This allows the charger to be left permanently connected for fully automatic and safe battery maintenance, even attempting to recover deeply discharged batteries from 0V.
Common Questions
What battery types are compatible with this charger?
This charger is compatible with a wide range of 12V battery types, including Lead-Acid (AGM, Gel, Wet cell) and Lithium (LiFePO4) batteries, offering specific charging algorithms for each.
Can I leave the charger connected indefinitely?
Yes, the Victron Blue Smart IP65 Charger features a 'Storage Mode' and comprehensive safety protections, allowing it to be left permanently connected for long-term, worry-free battery maintenance without overcharging or damage.
How does the Bluetooth connectivity work?
The charger has built-in Bluetooth that allows you to connect wirelessly via the free VictronConnect App on your smartphone, tablet, or laptop. This enables remote monitoring of charge status, battery voltage, current, and configuration of settings.
What is the 'Power Supply Function'?
This function allows the charger to provide a stable 12V DC output to power loads directly, even if no battery is connected. It acts as a regulated power supply for various 12V devices.
Installation Notes
- Ensure the charger is placed in a well-ventilated area, away from direct sunlight or heat sources.
- Connect the charger to a standard UK 3-pin mains AC socket (220-240V).
- Use the supplied crocodile clips or M8 eyelets for secure battery connection.
- For permanent installations, ensure appropriate DC overcurrent protection (fuse/breaker) is installed close to the battery.
- Refer to the detailed user manual for specific installation guidelines and safety precautions.
Before You Buy
- Verify your battery system is 12V to ensure compatibility with this charger.
- Confirm the capacity (Ah) of your battery to ensure the 25A charge current is suitable (typically 50Ah to 250Ah for optimal charging).
- Check the battery manufacturer's recommendations for charging voltage and current.
- Consider the environment where the charger will be used; its IP65 rating offers excellent protection against dust and splashes.
- Download the VictronConnect App to explore its features and ensure compatibility with your device.
All specifications are subject to verification. Always consult the manufacturer's official documentation for the most accurate and up-to-date product information. This product is covered by a 5-year manufacturer's warranty.
