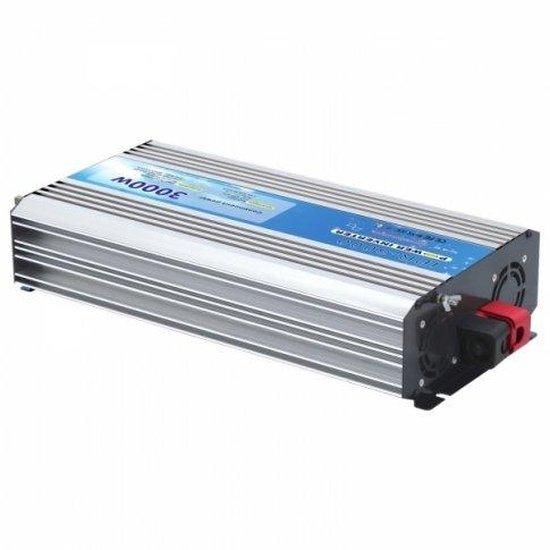

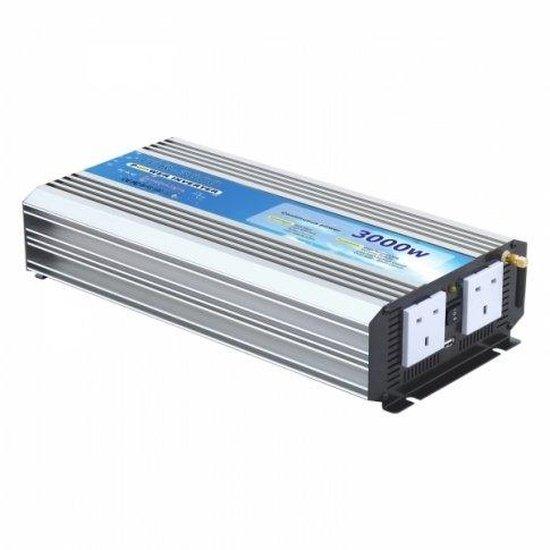

3000W 12V pure sine wave power inverter with On/Off remote control
Art: IPR-3000
Description
Photonic Universe ▶ IPR Series
3000W 12V Pure Sine Wave Power Inverter
Model: IPR-3000 | 6000W Peak Power | Remote Control Included
The Photonic Universe IPR-3000 is a robust 3000W 12V pure sine wave power inverter designed to convert DC battery power into stable 230V AC mains electricity. Ideal for off-grid systems, mobile applications, and backup power, this inverter provides a continuous output of 3000W and a peak power of up to 6000W, suitable for a wide range of domestic appliances and sensitive electronics.
Featuring a pure sine wave output, it delivers electricity almost identical to standard utility mains, ensuring compatibility and efficient operation for appliances with electric motors, sensitive audio/visual equipment, and other critical loads. The unit includes a convenient wireless On/Off remote control for flexible operation from up to 50 metres away, along with a built-in USB port for charging compatible devices.
ESSENTIAL NOTE: This inverter requires a 12V DC battery or battery bank for operation. Ensure your battery system can supply the necessary current for your chosen appliances.
Key Features
| ▶ Pure Sine Wave Output — Provides clean, stable power for all appliance types, including sensitive electronics. |
| ▶ 3000W Continuous Power — Capable of running multiple household appliances simultaneously. |
| ▶ 6000W Surge Capability — Handles high start-up loads from motors, pumps, and compressors. |
| ▶ Wireless Remote Control — Conveniently switch the inverter On/Off from up to 50m away. |
| ▶ Integrated USB Port — 2A output for charging mobile phones, tablets, and other USB-powered devices. |
| ▶ Comprehensive Safety Features — Built-in protections against common electrical faults. |
| ▶ Robust Design — Suitable for demanding off-grid and mobile power environments. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage (DC) | 12V (10-15V) |
| Output Voltage (AC) | 220-240V |
| Output Frequency | 50 Hz |
| Output Waveform | Pure Sine Wave |
| Total Harmonic Distortion (THD) | < 3% |
| Continuous Power | 3000W |
| Surge Power (Peak) | 6000W |
| Peak Efficiency | 90% |
| Low Battery Shut Down | 10.0V ± 0.5V DC |
| Low Battery Alarm | 10.5V ± 0.5V DC |
| High Voltage Shut Down | 15.5V ± 0.5V DC |
| Thermal Shut Down | 60 ± 5°C |
| Rated USB Output | 2A |
| Wireless Remote Range | Approx. 50m |
| Dimensions (L x W x H) | 460 x 220 x 95 mm |
| Weight | 6 kg |
Operating & Power Guidance
This 3000W pure sine wave inverter is designed for reliable power conversion from a 12V DC source to 230V AC. Its pure sine wave output ensures that appliances operate smoothly and efficiently, without the risk of damage often associated with modified sine wave inverters. The high surge capability allows it to handle inductive loads that require a burst of power to start, such as refrigerators or power tools.
The integrated USB port provides a convenient 2A output for charging smaller electronic devices directly from the inverter, reducing the need for additional adapters. The wireless remote control offers enhanced flexibility, allowing the inverter to be installed in less accessible locations while still providing easy control over its power state.
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Powering domestic appliances like TVs, fridges, and lighting on the go. |
| Boats & Yachts | Providing AC power for navigation equipment, galley appliances, and entertainment systems. |
| Off-Grid Cabins & Sheds | Enabling the use of standard electrical devices in remote locations without mains access. |
| Backup Power Systems | Supplying essential loads during power cuts when connected to a battery bank. |
| Mobile Work Vehicles | Running power tools, charging equipment, and lighting for tradespeople on site. |
Built-In Protection Functions
The Photonic Universe IPR-3000 inverter incorporates multiple automatic shutdown features to protect both the inverter and connected appliances. These include safeguards against over-discharge • overload • overheating • and short-circuit conditions. These protections help ensure reliable and safe operation in various power environments.
Common Questions
What type of appliances can this inverter power?
Thanks to its pure sine wave output, this inverter can power virtually any 230V AC appliance up to its 3000W continuous rating, including sensitive electronics, motors, pumps, and heating elements. Always check the power consumption of your appliances.
How do I connect the inverter to my battery?
The inverter should be connected directly to your 12V battery or battery bank using appropriately sized cables. It is crucial to ensure correct polarity and secure connections. For systems with solar charge controllers, connect the inverter in parallel with the solar controller and 12V appliances, directly to the battery terminals.
What is the purpose of the wireless remote control?
The wireless remote control allows you to switch the inverter on and off without needing to access the unit directly. This is particularly useful if the inverter is installed in a hard-to-reach location, such as a battery compartment or a remote cabinet, offering convenience and flexibility.
What battery capacity do I need for this 3000W inverter?
The required battery capacity depends on the total power consumption of your appliances and how long you intend to run them. For a 3000W inverter, a substantial 12V battery bank (e.g., 200Ah or more for sustained use) is typically recommended to avoid excessive discharge and ensure stable operation.
Installation Notes
- Ensure the inverter is installed in a dry, well-ventilated area, away from direct sunlight and heat sources.
- Use heavy-gauge cables for battery connections to minimise voltage drop and ensure efficient power transfer.
- Always connect the inverter directly to the 12V battery terminals. Do not connect to load terminals of a solar charge controller.
- Ensure all connections are tight and secure to prevent arcing and overheating.
- Consider installing an appropriate DC fuse or circuit breaker between the battery and the inverter for added safety.
Before You Buy
- Verify the total continuous power requirement of all appliances you intend to run simultaneously.
- Check the surge (start-up) power requirement of any motor-driven appliances to ensure it does not exceed 6000W.
- Confirm your battery bank is 12V DC and has sufficient capacity (Ah) for your expected usage duration.
- Measure the installation space to ensure the inverter's dimensions (460 x 220 x 95 mm) are suitable.
- Familiarise yourself with basic electrical safety practices for DC and AC systems.
Always verify product specifications and compatibility with your existing system components before purchase. Consult a qualified electrician for complex installations. Manufacturer warranty terms apply.
