120W monocrystalline solar panel with 5m cable
Art: SPA-120M
Description
Photonic Universe ▶ Monocrystalline Series

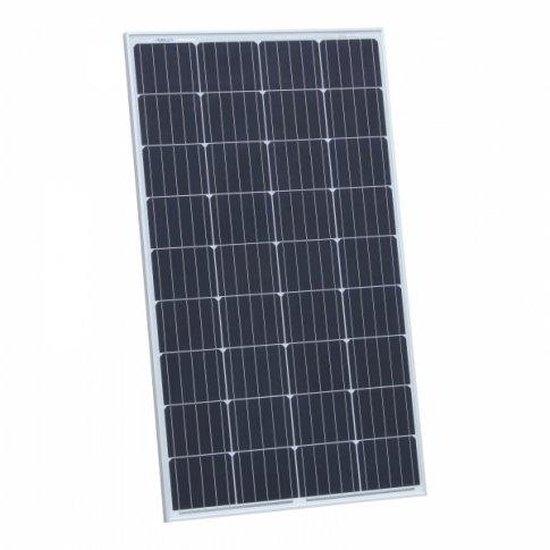

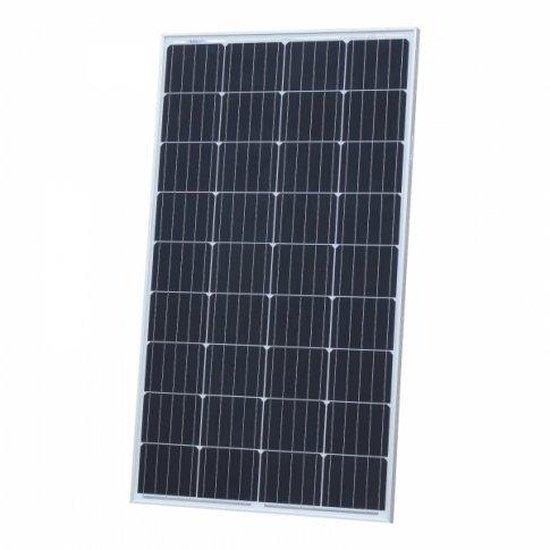

120W Monocrystalline Solar Panel with 5m Cable
High-Efficiency | 12V Battery Charging | Permanent Outdoor Use
The Photonic Universe 120W Monocrystalline Solar Panel (SKU: SPA-120M) is engineered for reliable, high-efficiency power generation in various UK applications. This robust and waterproof solar panel is designed for permanent outdoor installation, providing free electricity to charge 12V batteries and power a wide range of devices and appliances. Its advanced monocrystalline cells ensure excellent performance, even in lower light conditions, making it a dependable choice for off-grid systems, vehicles, and remote power needs.
Featuring innovative 5 busbar solar cells, this panel offers superior efficiency compared to older 2, 3, or 4 busbar designs. This technology allows for better current collection and reduced energy loss, enabling more power extraction from the same surface area and resulting in a compact yet powerful panel.
IMPORTANT NOTE: A solar charge controller is required when connecting this panel to a 12V battery or battery bank to prevent overcharging and ensure system longevity.
Key Features
| ▶ 120W Monocrystalline Cells — High-efficiency power generation, even in low-light conditions. |
| ▶ 5 Busbar Technology — Enhanced current collection, reduced energy loss, and improved overall panel efficiency. |
| ▶ Durable & Waterproof Design — Sealed aluminium frame and waterproof construction for reliable performance in all weather. |
| ▶ Pre-wired with 5m Cable & MC4 Connectors — Long, high-quality solar cable (4.0mm²) with MC4-compatible connectors for easy system integration. |
| ▶ Versatile Connectivity — Connectors can be cut for direct wiring to screw terminals on a charge controller. |
| ▶ Quality Control — Each panel is thoroughly tested and labelled with a unique serial number for traceability. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power (Pmax) | 120W |
| Maximum Power Voltage (Vmp) | 18V |
| Maximum Power Current (Imp) | 6.67A |
| Open Circuit Voltage (Voc) | 22.5V |
| Short Circuit Current (Isc) | 7.02A |
| Power Allowance Range | 0% to +3% |
| Dimensions (L x W x D) | 1180 x 670 x 30 mm |
| Weight | 10 kg |
| Mounting Holes | 4 |
| Cable Length & Type | 2 x 5m, 4.0mm² with MC4 |
Operating & Power Guidance
This 120W monocrystalline solar panel is designed to provide a steady DC power output suitable for charging 12V battery systems. Its high-efficiency cells ensure optimal energy harvest throughout the day, even under varying light conditions typical of the UK climate. The panel's robust construction allows for long-term outdoor deployment, making it ideal for continuous power supply to off-grid installations.
For optimal performance and battery protection, always pair this solar panel with a compatible solar charge controller. Multiple panels can be connected in parallel to increase current (Amps) for faster charging or in series to increase voltage (Volts) for higher voltage systems, provided your charge controller and inverter are rated for the combined input. Always consult the specifications of all connected components to ensure compatibility and safe operation.
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Ideal for charging leisure batteries to power lights, pumps, and small appliances on the go. |
| Boats & Yachts | Provides reliable power for marine electronics, lighting, and essential onboard systems. |
| Off-Grid Systems | Suitable for remote cabins, sheds, or backup power solutions where mains electricity is unavailable. |
| Small Commercial Use | Powers security cameras, remote sensors, or lighting in small business and agricultural settings. |
Built-In Protection & Durability
This Photonic Universe solar panel features a robust, sealed aluminium frame designed for long-term outdoor exposure. Its waterproof construction ensures reliable operation in all weather conditions, protecting the internal components from moisture and environmental elements. The advanced monocrystalline cells are engineered for durability, contributing to a long operational lifespan and consistent power output.
Common Questions
What is a 5 busbar solar cell?
Busbars are metallic strips on solar cells that collect and conduct electricity. A 5 busbar design means there are five such strips, which improves current collection, reduces resistive losses, and enhances overall efficiency and durability compared to fewer busbars.
Can this panel be used in the UK's variable weather?
Yes, monocrystalline solar panels are known for their good performance in low-light conditions and variable weather, making them well-suited for the UK climate. The panel's waterproof design further ensures reliability.
Is a charge controller included with this solar panel?
No, this 120W solar panel is supplied without a charge controller. A suitable solar charge controller is essential for regulating the voltage and current from the panel to safely charge a 12V battery and prevent overcharging. Solarika recommends purchasing one of our compatible charge controllers.
Can I connect multiple panels together?
Yes, multiple Photonic Universe solar panels can be connected in parallel or series to generate additional power, depending on your system's voltage and current requirements. Always ensure your charge controller and other system components are rated for the combined output.
Installation Notes
- Ensure the panel is securely mounted in a location with maximum sun exposure, free from shading.
- Connect the panel to a suitable solar charge controller before connecting to a battery.
- The included MC4 connectors facilitate easy connection; they can be cut if direct wiring to screw terminals is preferred.
- For permanent installations, consider professional installation to ensure compliance with local regulations and safety standards.
Before You Buy
- Verify your system's voltage requirements (this panel is designed for 12V systems with a controller).
- Confirm the dimensions (1180 x 670 x 30 mm) are suitable for your intended mounting location.
- A solar charge controller is a mandatory component for safe and efficient battery charging.
- Consider your total power needs; multiple panels may be required for higher energy consumption.
Always verify product specifications and compatibility with your existing or planned solar system components before purchase. This product is covered by a 1-year workmanship warranty from Photonic Universe, and solar cells are guaranteed to produce at least 90% of nominal power in 10 years and 80% in 25 years by the cell manufacturer.
