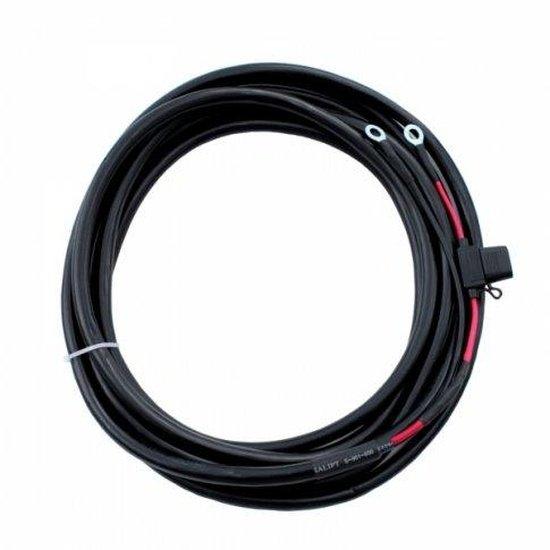

5m 4.0mm2 dual core extension cable with a fuse holder, 15A fuse and ring terminals (8mm)
Art: BCAB540FH
Description
PHOTONIC UNIVERSE CABLES
5m 4.0mm² Dual Core Extension Cable
With Fuse Holder, 15A Fuse & 8mm Ring Terminals | For Solar & Battery Systems
The Photonic Universe 5m 4.0mm² Dual Core Extension Cable is a versatile and robust solution designed for reliable power connections in various low-voltage applications. This pre-assembled cable simplifies wiring for solar charging kits, battery banks, and general electrical systems in vehicles, boats, and off-grid setups.
Featuring a 4.0mm² cross-section, this 5-metre double core cable comes complete with a pre-fitted fuse holder, a 15A blade fuse for essential circuit protection, and 8mm ring terminals for quick and secure battery connections. It is engineered to ensure negligible power loss, making it ideal for currents up to 12A.
OPTIMAL PERFORMANCE: Designed for currents up to 12A to ensure minimal power loss and efficient operation.
Key Features
| ▶ 5m Length: Provides ample reach for various installation requirements. |
| ▶ 4.0mm² Dual Core: Robust cross-section for efficient current transfer. |
| ▶ Integrated 15A Fuse Holder: Includes a blade fuse for essential circuit protection. |
| ▶ Pre-fitted 8mm Ring Terminals: Ensures quick and secure connections to battery posts. |
| ▶ Low Power Loss: Optimised for currents up to 12A to maintain system efficiency. |
| ▶ Versatile Application: Suitable for solar, automotive, marine, and general low-voltage wiring. |
Technical Specifications
| Parameter | Value |
|---|---|
| Cable Length | 5 metres |
| Cable Cross-Section | 4.0mm² |
| Core Type | Dual Core |
| Fuse Rating | 15A Blade Fuse |
| Terminal Type | 8mm Ring Terminals |
| Max Recommended Current | 12A |
System Integration Notes
This 5m dual core cable is engineered for straightforward integration into various low-voltage power systems. Its design prioritises ease of use and safety, making it a practical choice for both new installations and system expansions.
| System Type | Power Guidance (Max 12A) |
|---|---|
| 12V Solar Charging Kits | Suitable for systems up to approximately 180W (e.g., 12V x 12A = 144W, manufacturer states up to 180W). |
| 24V Solar Charging Kits | Can be used with larger panels for systems up to approximately 288W (24V x 12A). |
| 36V Solar Charging Kits | Applicable for systems up to approximately 432W (36V x 12A). |
Typical Applications
| Application | Description |
|---|---|
| Solar Charging Kits | Extending solar panel leads or connecting a solar charge controller to a battery. |
| Battery Connections | Direct connection to 12V, 24V, or 36V battery banks for power distribution. |
| Vehicle & Marine Wiring | Ideal for wiring auxiliary systems in motorhomes, caravans, boats, and other vehicles. |
| General Low-Voltage Wiring | Suitable for various other low-voltage DC applications where a fused connection is required. |
Built-In Protection Functions
This cable includes a pre-fitted 15A blade fuse within a fuse holder, providing crucial overcurrent protection for your connected equipment and battery. This helps to safeguard against potential damage from excessive current draw, enhancing the safety and longevity of your electrical system.
Common Questions
What is the primary use of this cable?
This 5m dual core cable is primarily used in solar charging kits to extend solar panel leads or connect a solar charge controller to a battery. It's also suitable for general low-voltage wiring in vehicles, boats, and off-grid applications.
What current can this cable safely handle?
The 4.0mm² cross-section of this cable is designed for optimal performance with currents up to 12A, ensuring negligible power loss. It includes a 15A fuse for protection against higher currents.
Are the terminals pre-fitted?
Yes, the cable comes pre-fitted with an inline fuse holder, a 15A blade fuse, and 8mm ring terminals, making it ready for immediate connection to most battery posts.
Can I use this cable for 24V or 36V systems?
Yes, this cable is suitable for 12V, 24V, and 36V systems. The 12A current rating remains constant, meaning it can handle higher power ratings in higher voltage systems (e.g., up to 288W for 24V or 432W for 36V).
Installation Notes
- Ensure all connections are clean, tight, and secure to prevent resistance and overheating.
- Route cables away from sharp edges, moving parts, and high-heat sources.
- Use appropriate cable management (e.g., clips, conduits) to protect the cable from physical damage.
- Always disconnect power sources before making or breaking electrical connections.
- Verify the fuse rating is appropriate for your specific application and connected devices.
Before You Buy
- Check Length: Confirm the 5m length is sufficient for your intended cable run.
- Verify Current: Ensure your application's maximum current draw does not exceed 12A for optimal performance.
- Terminal Size: Confirm 8mm ring terminals are compatible with your battery posts or connection points.
- Voltage Compatibility: Suitable for 12V, 24V, and 36V DC systems.
- Fuse Requirement: The included 15A fuse provides protection; ensure it matches your system's needs.
Always verify product specifications and compatibility with your existing system components before purchase and installation. Consult a qualified electrician if unsure.
