60A 12V/24V/48V Automatic over-current DC circuit breaker / switch
Art: CB60
Description
Photonic Universe ▶ DC Protection

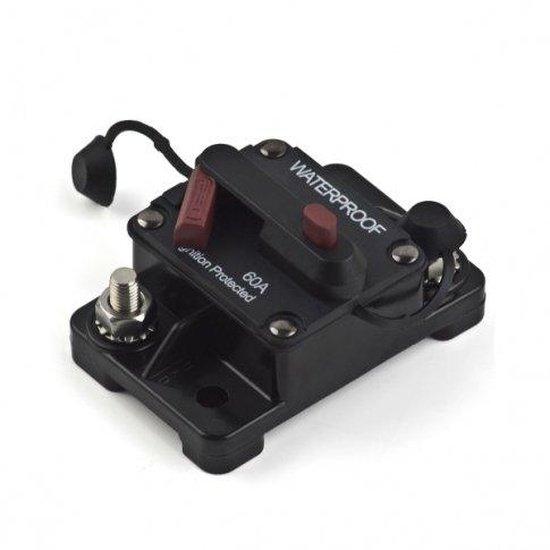

60A Automatic Over-Current DC Circuit Breaker
Resettable Fuse & On/Off Switch | 12V/24V/48V Systems | IP67 Rated
The Photonic Universe 60A Automatic Over-Current DC Circuit Breaker (SKU: CB60) is a versatile protection device designed for a wide range of DC electrical systems, operating at 12V, 24V, or 48V. This essential component combines the functionality of a resettable 60A fuse with a manual On/Off switch, offering both robust over-current protection and convenient circuit isolation in a single unit.
Ideal for safeguarding against high power draw, short-circuits, wiring errors, and equipment faults, this thermal overcurrent protection device ensures the longevity and safety of your DC setup. Its resettable nature eliminates the need for constant fuse replacements, providing a more practical and cost-effective solution for managing electrical faults.
KEY BENEFIT: Combines resettable fuse and manual isolation switch for enhanced system control and protection.
Key Features
| ▶ 60A Over-Current Protection — Safeguards DC systems from damaging current surges and faults. |
| ▶ Resettable Design — Eliminates the need for fuse replacement, offering convenience and cost savings. |
| ▶ Manual On/Off Switch — Provides easy isolation for maintenance or system disconnection. |
| ▶ Wide Voltage Compatibility — Suitable for 12V, 24V, and 48V DC systems. |
| ▶ IP67 Waterproof Rating — Ensures reliable operation in wet or dusty environments. |
| ▶ UL94V-0 Rated Thermoplastic — Constructed from durable, high-temperature, flame-retardant material. |
| ▶ Ignition Protected — Meets international safety standards for marine and automotive use. |
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | CB60 |
| Rating | 60A |
| Voltage Range | 12V / 24V / 48V DC |
| Type | Thermal Overcurrent Protection Device |
| Material | Thermal Plastic (UL 94V-0 Rated) |
| Operating Temperature | -32°C to 82°C |
| Storage Temperature | -34°C to 149°C |
| Terminals Size | M6 |
| Enclosure / Waterproof Rating | IP67 |
| Dimensions (L x W x H) | 74 x 48 x 37 mm |
| Weight | 110g |
| International Standards | S.A.E. J1625, J1171, UL1500 |
Built-In Protection Functions

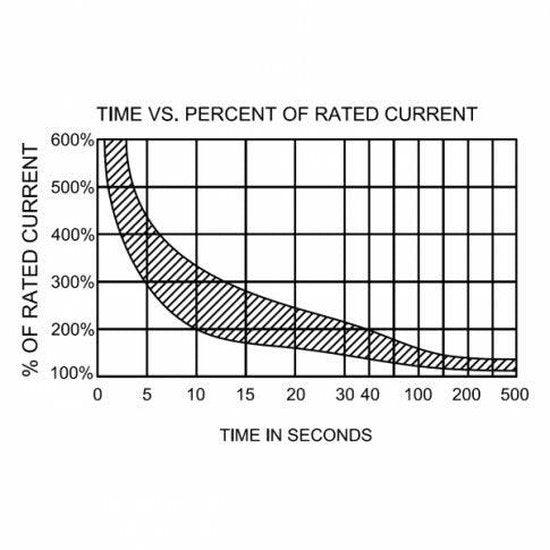

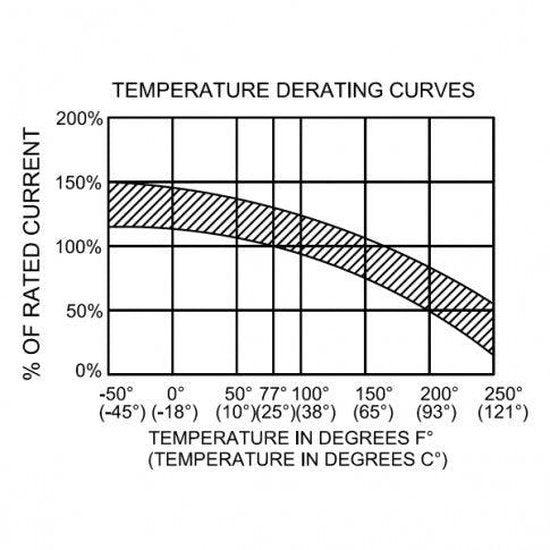

This Photonic Universe DC circuit breaker offers robust protection for your electrical systems. It features thermal overcurrent protection, designed to trip and interrupt the circuit during sustained overcurrent events, preventing damage from overheating. The unit is ignition protected, meeting S.A.E. J1625, J1171, and UL1500 standards, making it safe for use in environments where flammable vapours may be present, such as marine or automotive applications. Its housing is made from UL94V-0 rated thermal plastic, indicating high flame retardancy and self-extinguishing properties. Furthermore, an IP67 rating ensures complete protection against dust ingress and temporary immersion in water up to 1 metre for 30 minutes.
Typical Applications
| Application | Description |
|---|---|
| Solar & Wind Systems | Connecting solar or wind charge controllers to battery banks for overcurrent protection. |
| Off-Grid Inverter Circuits | Placement between off-grid inverter DC inputs and batteries for safety and isolation. |
| DC Power Distribution | Protecting main or auxiliary DC power distribution and charging circuits. |
| Automotive & Marine | Suitable for various DC applications in vehicles, boats, and RVs requiring ignition protection. |
Common Questions
What is a thermal overcurrent protection device?
A thermal overcurrent protection device, like this circuit breaker, uses a bimetallic strip or similar element that heats up and bends when exposed to sustained excessive current. This bending action triggers a mechanism to open the circuit, cutting off power and preventing damage from overloads.
Can this circuit breaker be used as a main On/Off switch?
Yes, this circuit breaker features a manual-break option, allowing it to function as an On/Off switch. This provides a convenient way to disconnect or reconnect your DC system for maintenance or when not in use.
What does the IP67 rating mean for this product?
An IP67 rating signifies that the circuit breaker is fully protected against dust ingress and can withstand temporary immersion in water up to 1 metre for 30 minutes. This makes it suitable for outdoor and marine environments where exposure to moisture and dust is common.
Is this circuit breaker suitable for high-temperature environments?
Yes, the circuit breaker is constructed from UL94V-0 rated thermal plastic, designed to withstand high temperatures. Its operating temperature range is -32°C to 82°C, making it suitable for various demanding conditions.
Installation Notes
- This circuit breaker is designed for surface mounting.
- Ensure correct polarity when connecting to your DC system.
- Use appropriate M6 terminals and ensure secure, tight connections to prevent overheating.
- Always consult a qualified electrician or refer to local electrical codes for installation.
- Mount in a location that allows for adequate air circulation, even with its robust temperature ratings.
Before You Buy
- Verify the 60A rating is suitable for your specific DC circuit's maximum current draw.
- Confirm your system voltage (12V, 24V, or 48V DC) is compatible.
- Consider the physical dimensions (74 x 48 x 37 mm) for your intended mounting location.
- Ensure you have the necessary M6 terminal connectors for installation.
- Review the application suitability for solar, marine, automotive, or general DC distribution.
Always verify product specifications and compatibility with your specific system requirements before purchase. All information is based on verified manufacturer data and industry standards.
