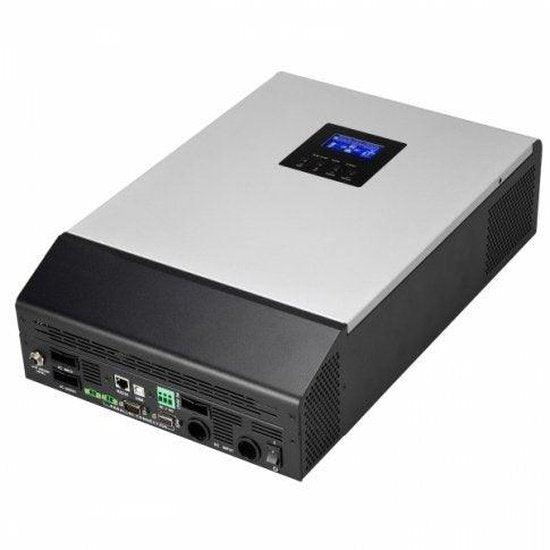

Iconica 5000W 48V hybrid pure sine wave inverter with parallel capability
Art: IC2-KMS5000-48P
Description
ICONICA HYBRID INVERTER SERIES
Iconica 5000W 48V Hybrid Pure Sine Wave Inverter
IC2-KMS5000-48P | 80A MPPT & 100A Charger | Parallel Capable
The Iconica 5000W 48V Hybrid Pure Sine Wave Inverter (SKU: IC2-KMS5000-48P) is a versatile all-in-one power management system designed for robust off-grid, hybrid, and backup energy applications. This unit intelligently combines a powerful 5000W pure sine wave inverter, an efficient 80A MPPT solar charge controller, and a robust 100A smart mains battery charger into a single, compact device.
Ideal for remote properties, holiday homes, workshops, and backup systems, this Iconica inverter ensures a stable 230V AC output for a wide range of appliances. Its advanced features, including parallel capability for system expansion and the ability to operate without a battery, provide exceptional flexibility and reliability for your renewable energy setup.
KEY CAPABILITY: Operates with or without battery, providing direct solar power to AC loads with 0ms transfer time for critical applications.
Key Features
| ▶ Pure Sine Wave Output — Ensures compatibility with sensitive electronics and motor-driven appliances. |
| ▶ Integrated 80A MPPT Controller — Maximises solar energy harvest with up to 98% efficiency. |
| ▶ High-Current 100A Battery Charger — Provides fast and efficient multi-stage charging from mains or generator. |
| ▶ Parallel System Expansion — Connect up to 8 identical units for increased power capacity (up to 40kW) or three-phase operation. |
| ▶ Battery-Free Operation — Powers AC loads directly from solar panels, reducing system costs and increasing efficiency. |
| ▶ Uninterruptible Power Supply (UPS) — Features 0ms transfer time for seamless switchover during power outages. |
| ▶ Advanced Monitoring & Customisation — User-configurable settings and PC software for comprehensive system control. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 48V |
| Continuous Power Output | 5000W / 5000VA |
| Surge Power | 10,000VA |
| Output Frequency | 50Hz / 60Hz |
| Output Waveform | Pure Sine Wave |
| Max Solar Input Power | 6000W |
| Max Open Circuit Solar Voltage | 450V DC |
| MPPT Operating Voltage Range | 120-430V DC |
| Max Solar Charging Current | 80A |
| Max Mains AC Charging Current | 100A |
| Max Combined Charging Current | 100A |
| Operating Temperature | -10°C to 50°C |
| Dimensions (H x W x D) | 468 x 295 x 120 mm |
| Weight | 11 kg |
Charging & Output Modes
The Iconica 5000W 48V Hybrid Inverter intelligently manages multiple power sources to provide continuous and reliable electricity. It can draw power from solar panels, mains electricity, a generator, or a connected battery bank, either individually or in combination.
Its Uninterruptible Power Supply (UPS) function ensures a seamless 0ms transfer from mains to battery mode in the event of a power cut, safeguarding critical loads. For solar-rich environments, the inverter can power AC appliances directly from solar panels without needing a battery, maximising efficiency and reducing reliance on grid or stored energy.
Users can customise output source priority and battery charging priority settings to optimise energy usage according to specific needs, such as prioritising solar, battery, or mains power. The parallel capability allows for significant system expansion, enabling up to 8 identical inverters to work together for increased power output or to create a three-phase system for industrial applications.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides reliable primary power in locations without mains electricity access. |
| Backup Power Systems | Ensures continuous power for essential loads during grid outages with instant transfer. |
| Mobile & Marine Installations | Suitable for caravans, motorhomes, narrowboats, and yachts requiring stable AC power. |
| Commercial & IT Setups | Offers dependable power for small businesses or IT systems requiring constant uptime. |
Built-In Protection Functions
The Iconica 5000W 48V Hybrid Inverter incorporates multiple safety features to protect both the unit and connected appliances. These include robust protection against overload • short circuit • over-temperature • battery overcharge • reverse current • battery over-voltage • and battery under-voltage. The intelligent design ensures stable and safe operation, with an auto-restart function after overload or overheating conditions are cleared.
Common Questions
What does 'hybrid' mean for this inverter?
A hybrid inverter can manage multiple power inputs simultaneously, such as solar, battery, and mains/generator. This Iconica model intelligently combines these sources to provide continuous AC power, optimising energy flow based on your configured priorities.
Can I expand my system later with this inverter?
Yes, this Iconica inverter features parallel capability, allowing you to connect up to 8 identical units to increase your total power output or configure a three-phase system. A parallel connection kit is required for each additional inverter.
Is a battery bank always necessary for operation?
No, a unique feature of this Iconica hybrid inverter is its ability to power AC loads directly from solar panels without a connected battery bank. This is ideal for applications where direct solar utilisation is preferred.
How can I monitor my system's performance?
The inverter comes with a PC connection cable and software CD for detailed monitoring and customisation of settings. Optional Wi-Fi or 3G kits are available for remote monitoring capabilities.
Installation Notes
- Installation should be carried out by a qualified electrician or solar professional to ensure safety and compliance.
- Ensure adequate ventilation around the inverter to prevent overheating and ensure optimal performance.
- Verify correct wiring and grounding procedures as detailed in the user manual.
- Consider the inverter's fan noise if installing in a quiet living area, as it may not be suitable for locations requiring absolute silence.
- If connecting in parallel, ensure all inverters are identical and use the appropriate parallel connection kits (sold separately).
Before You Buy
- Confirm your battery bank voltage is 48V. This inverter is compatible with 48V flooded, AGM, and GEL lead-acid batteries, with customisable settings for other lead-acid types.
- Calculate your total load requirements to ensure the 5000W continuous output and 10,000VA surge power meet your needs.
- Verify your solar array's total power and voltage are within the inverter's limits (Max 6000W solar input, 450V DC open circuit voltage, 120-430V DC MPPT operating range).
- Review local electrical regulations and standards for off-grid or hybrid system installations.
- A detailed user manual and PC software are included for setup and operation.
Always verify product specifications and compatibility with your existing system components before purchase. Professional installation is recommended for optimal performance and safety.
