100W 12V lightweight folding solar charging kit with MPPT controller
Art: ARF-FWP-100M
Description
Photonic Universe Solar Kits
100W 12V Lightweight Folding Solar Charging Kitwith MPPT Controller
Portable Power | High-Efficiency MPPT | Durable ETFE Panels

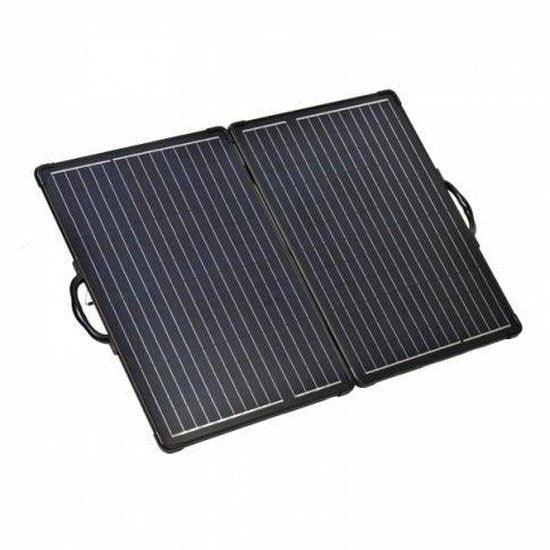

The Photonic Universe 100W 12V Lightweight Folding Solar Charging Kit with MPPT Controller (SKU: ARF-FWP-100M) offers a highly portable and efficient solution for off-grid power. This comprehensive kit features two durable 50W monocrystalline solar panels, reinforced with anodised aluminium and a robust ETFE surface, paired with an integrated 10A MPPT solar charge controller. Designed for ease of use, it provides reliable power for charging 12V batteries in various mobile and remote applications.
Engineered for optimal performance, the advanced MPPT controller maximises power extraction from the solar panels, ensuring efficient charging even in varying light conditions. The kit is supplied with all necessary components for immediate setup, including a 5m battery cable with crocodile clips and a protective storage case, making it ideal for users requiring flexible and dependable solar power on the go.
Buyer Note:
This kit is specifically designed for 12V lead-acid battery systems, including flooded, sealed, Gel, and AGM types. It is not compatible with lithium batteries.
Key Features
- ▶ 100W High-Efficiency Output: Comprises two 50W monocrystalline solar panels for robust power generation.
- ▶ Integrated 10A MPPT Controller: Maximises energy harvest from panels, offering up to 30% more efficiency than PWM controllers.
- ▶ Durable ETFE Surface: Provides enhanced lifespan, superior light transmittance, and self-cleaning properties.

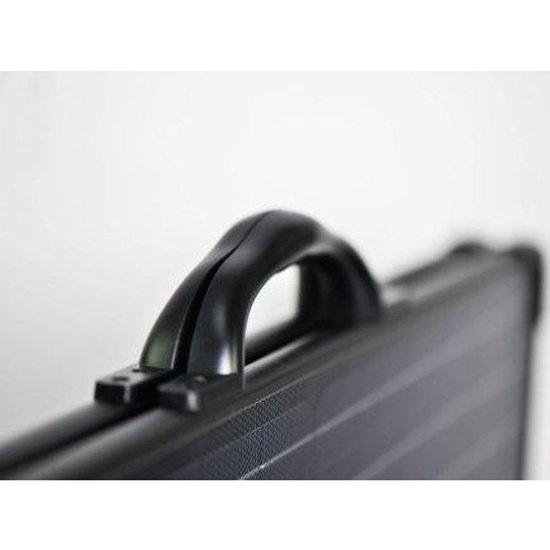

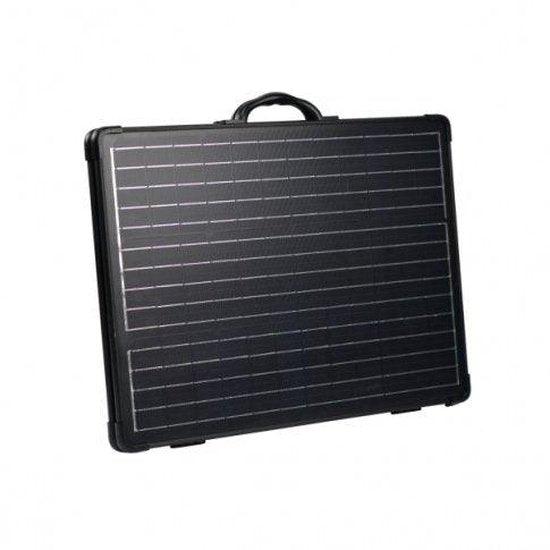

- ▶ Lightweight & Portable: Weighs only 5.5 kg with inbuilt handles and a protective foam-lined case for easy transport.
- ▶ All-Weather Design: 100% waterproof construction, including the charge controller, suitable for various outdoor conditions.

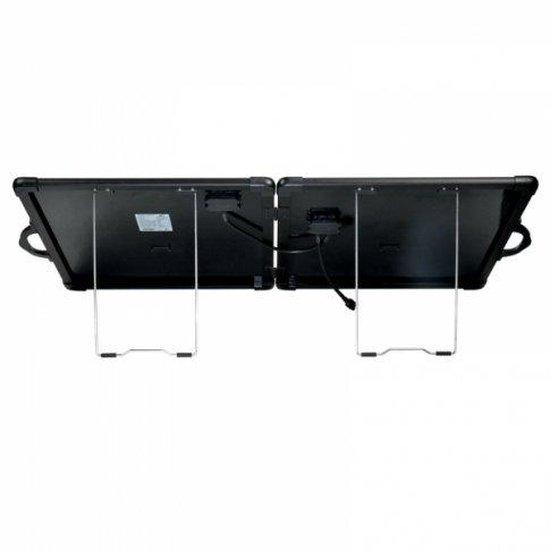

- ▶ Adjustable Aluminium Stand: Allows optimal positioning towards the sun for maximum power output.
- ▶ Comprehensive Safety: Built-in protections against overcharging, reverse polarity, short-circuit, and reverse current.
Technical Specifications
| Peak Power (Pmax) | 100W (2 x 50W panels) |
| Maximum Power Voltage (Vmp) | 19.1V |
| Maximum Power Current (Imp) | 5.23A |
| Open Circuit Voltage (Voc) | 22.6V |
| Short Circuit Current (Isc) | 6.07A |
| Power Allowance | +/- 3% |
| Controller Type | 10A MPPT (Maximum Power Point Tracking) |
| Battery Compatibility | 12V Lead-Acid (Flooded, Sealed, Gel, AGM) |
| Dimensions (Folded) | 61.5 x 56.5 x 5 cm |
| Weight | 5.5 kg |
MPPT Controller & Battery Charging
The integrated 10A MPPT (Maximum Power Point Tracking) solar charge controller is crucial for optimising your solar charging performance. Unlike simpler PWM controllers, MPPT technology dynamically adjusts to the solar panel's voltage and current characteristics, ensuring that the maximum available power is consistently delivered to your 12V lead-acid battery. This results in faster charging and greater energy yield, particularly beneficial in conditions with fluctuating sunlight or lower temperatures.
| Feature | Benefit |
|---|---|
| Maximum Power Point Tracking | Extracts up to 30% more power from solar panels compared to PWM controllers. |
| Automatic Charging Stages | Manages bulk, absorption, and float charging to prolong battery life and ensure full charge. |
| Waterproof Design | Ensures reliable operation in outdoor and marine environments. |
| Temperature Compensation | Adjusts charging parameters based on ambient temperature for optimal battery health. |
Typical Applications
This 100W folding solar charging kit is versatile and suitable for a wide range of 12V battery charging needs, providing free, clean energy wherever you need it.
| Application | Description |
|---|---|
| Motorhomes & Caravans | Ideal for maintaining leisure batteries, powering lights, and small appliances during touring. |
| Boats & Yachts | Charges marine batteries for navigation, lighting, and onboard electronics. |
| Camping & Off-Grid Use | Provides portable power for remote campsites, outdoor events, and emergency backup. |
| Small 12V Battery Systems | Suitable for various other 12V battery applications where portability is key. |
Built-In Protection Functions
The integrated 10A MPPT charge controller provides essential safety features to protect your battery and solar system. These include: Overcharge Protection • Reverse Polarity Protection • Short-Circuit Protection • Reverse Current Protection (prevents battery discharge back through the panels at night) • Overload Protection • Overheating Protection.
Common Questions
What type of batteries is this kit compatible with?
This kit is designed for charging 12V lead-acid batteries, including flooded, sealed, Gel, and AGM types. It is not suitable for lithium batteries.
Can this kit be used in all weather conditions?
Yes, the kit is designed to be 100% waterproof, including the integrated MPPT solar charge controller, making it suitable for use in various outdoor weather conditions.
What are the benefits of an ETFE coating on the solar panels?
The ETFE (Ethylene Tetrafluoroethylene) coating provides enhanced durability, a longer lifespan, improved efficiency due to high light transmittance and anti-reflective properties, and reduced maintenance through its self-cleaning surface. It also offers excellent resistance to UV, weather, and corrosion.
How does the MPPT controller improve charging efficiency?
The MPPT controller continuously tracks the maximum power point of the solar panels, adjusting voltage and current to extract the most power possible. This can lead to significantly higher charging efficiency (up to 30% more) compared to traditional PWM controllers, especially in conditions where panel voltage fluctuates.
Installation Notes
The Photonic Universe 100W folding solar kit is designed for straightforward setup. Simply unfold the panels, adjust the integrated stand to face direct sunlight, and connect the supplied 5m battery cable with crocodile clips directly to your 12V lead-acid battery. Ensure connections are secure and observe correct polarity. An installation manual is included for detailed guidance.
While the kit is waterproof, positioning it in a well-ventilated area is recommended for optimal controller performance and longevity. Avoid shading the panels for maximum power generation.
Before You Buy
- ✓ Battery Type: Confirm your battery is a 12V lead-acid type (flooded, sealed, Gel, or AGM). This kit is not for lithium batteries.
- ✓ Power Needs: Assess if 100W is sufficient for your charging requirements. Consider your daily energy consumption.
- ✓ Space & Portability: Verify the folded dimensions (61.5 x 56.5 x 5 cm) and weight (5.5 kg) suit your storage and transport needs.
- ✓ Sunlight Exposure: Ensure you have an unshaded area to position the panels for optimal performance.
Always verify product specifications and compatibility before purchase. This product comes with a 1-year workmanship warranty provided by Photonic Universe for the solar panel, and the solar charge controller warranty is provided by its manufacturer. Solar cells are guaranteed to produce at least 90% of nominal power in 10 years and 80% in 25 years.
