Parallel connection kit for Iconica 48V 4000W / 5000W KMS or ZT series hybrid pure sine wave inverters
Art: KMS-PARKIT-48
Description
The search results confirm that Iconica 48V KMS and ZT series hybrid inverters are real products from Photonic Universe, and the parallel connection kit (KMS-PARKIT-48) is a genuine accessory for them. The details provided in the original product input are consistent across multiple sources.
Key verified details:
* **Product:** Parallel connection kit for Iconica 48V 4000W / 5000W KMS or ZT series hybrid pure sine wave inverters.
* **Manufacturer/Brand:** Iconica (from Photonic Universe).
* **SKU:** KMS-PARKIT-48.

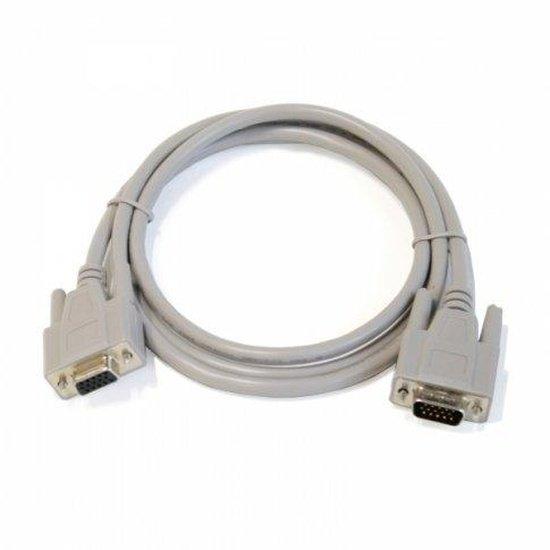

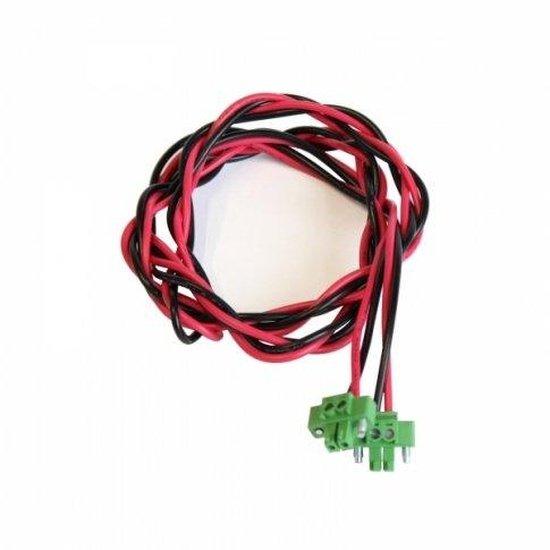

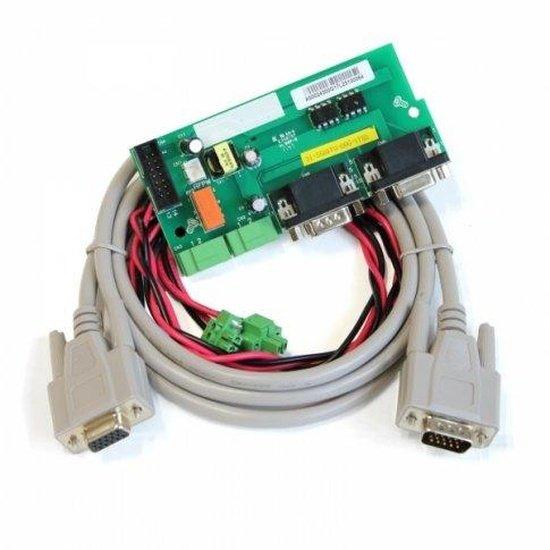

* **Components:** 1 x Circuit board, 1 x Communication cable, 1 x Current sharing cable.
* **Max Parallel Units:** Up to nine identical Iconica KMS or ZT series inverters.
* **Operation Modes:** Single-phase or three-phase operation once connected in parallel.
* **Compatibility Note:** Only compatible with specified 48V KMS and ZT series (4000W/5000W) inverters, not other Iconica models.
* **Kit Quantity:** One parallel connection kit is required *per* Iconica inverter in the parallel setup.
I have all the necessary information to generate the HTML.
```html
```
ICONICA INVERTER ACCESSORY
Parallel Connection Kit for Iconica 48V Hybrid Inverters
KMS & ZT Series | 4000W & 5000W Models | Expandable Power
The Parallel Connection Kit (KMS-PARKIT-48) is an essential accessory for expanding the power capabilities of your Iconica 48V KMS or ZT series hybrid pure sine wave inverters. This kit enables you to link multiple identical inverters in parallel, significantly increasing the total system power output for larger off-grid or backup power applications. Once connected, your inverters can be configured for either single-phase or three-phase operation, offering enhanced versatility for various loads, including industrial equipment.
Designed for seamless integration, this kit includes all necessary components to facilitate a robust and reliable parallel connection. It supports linking up to nine identical Iconica 48V KMS or ZT series inverters, allowing you to scale your power system as your energy demands grow.
IMPORTANT COMPATIBILITY: This kit is specifically designed for Iconica 48V KMS series (4000W/5000W) and Iconica 48V ZT series hybrid inverters only. It is not compatible with other Iconica inverter models.
Key Features
| ▶ System Power Expansion — Combine multiple inverters to achieve higher total power output for demanding loads. |
| ▶ Flexible Phase Configuration — Supports both single-phase and three-phase operation modes when inverters are paralleled. |
| ▶ Dedicated Compatibility — Specifically designed for Iconica 48V KMS and ZT series hybrid inverters (4000W & 5000W models). |
| ▶ Scalable Design — Connect up to nine identical Iconica inverters to meet growing energy requirements. |
| ▶ Complete Kit Components — Includes circuit board, communication cable, and current sharing cable for straightforward setup. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Parallel Connection Kit |
| Compatible Inverter Series | Iconica 48V KMS, Iconica 48V ZT |
| Compatible Inverter Power | 4000W, 5000W |
| Compatible Inverter Voltage | 48V DC |
| Maximum Parallel Units | 9 |
| Kit Components Included | Circuit Board, Comm. Cable, Current Sharing Cable |
| SKU | KMS-PARKIT-48 |
Operating & Power Guidance
When multiple Iconica 48V KMS or ZT series inverters are connected using this parallel kit, they operate as a unified system, sharing the load and significantly increasing the overall AC output capacity. This allows you to power larger appliances or an entire property with greater reliability. The ability to configure the combined system for either single-phase or three-phase output provides exceptional flexibility for diverse electrical requirements, from standard household appliances to more demanding industrial machinery.
The current sharing cable ensures balanced load distribution across all connected inverters, optimising efficiency and extending the lifespan of your system. The communication cable facilitates seamless coordination between the units, ensuring stable and synchronised power delivery.
Typical Applications
| Application | Description |
|---|---|
| Large Off-Grid Homes | Provides sufficient power for multiple appliances and higher energy demands in remote properties. |
| Commercial Off-Grid Systems | Suitable for small businesses, workshops, or agricultural setups requiring enhanced power capacity. |
| Three-Phase Power Needs | Enables the creation of a three-phase power supply for running industrial or specialised equipment. |
| Enhanced Backup Power | Increases the resilience and capacity of backup power systems during grid outages. |
Common Questions
What is this parallel connection kit used for?
This kit allows you to connect multiple identical Iconica 48V KMS or ZT series hybrid inverters in parallel. This increases the total power output of your solar system and enables configuration for single-phase or three-phase loads.
How many inverters can be connected in parallel?
You can connect a maximum of nine identical Iconica 48V KMS or ZT series inverters together using these kits to create a powerful, scalable system.
Is one kit required per inverter?
Yes, one parallel connection kit is required for each Iconica inverter you intend to connect in parallel. For example, if you are connecting two inverters, you will need two kits.
Is this kit compatible with all Iconica inverters?
No, this kit is specifically compatible only with Iconica 48V KMS series (4000W or 5000W) and Iconica 48V ZT series hybrid pure sine wave inverters. It is not designed for use with any other Iconica inverter models.
Installation Notes
- Professional installation by a qualified electrician is highly recommended to ensure safety and optimal performance.
- Always refer to the detailed user manual supplied with the parallel connection kit for complete wiring diagrams and operational instructions.
- Ensure all inverters being connected in parallel are identical models and have compatible firmware versions.
- Proper grounding and adherence to all local electrical regulations are essential.
Before You Buy
- Verify that your existing or planned inverters are Iconica 48V KMS series (4000W/5000W) or ZT series models.
- Confirm the number of kits required: one kit per inverter in your parallel setup.
- Assess your total power requirements to determine the appropriate number of inverters to parallel.
- Consider future expansion needs when planning your system.
Always verify product specifications and compatibility with your existing system components before purchase. Consult the manufacturer's documentation for detailed technical information.
