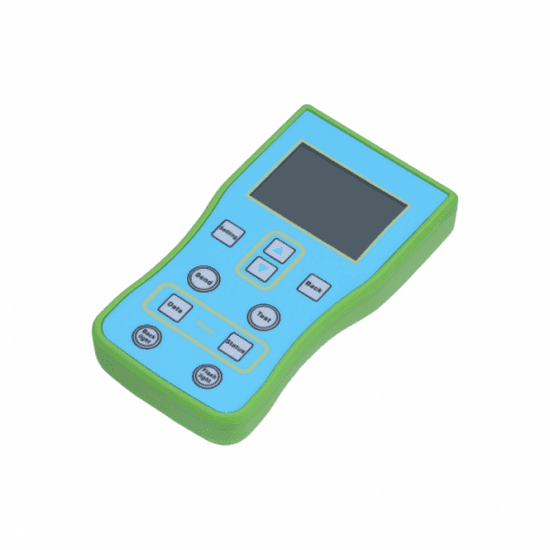

Remote IR programmer for LUX series waterproof MPPT solar charge controllers and ARF series lightweight folding solar kits
Art: LUX-PRG
Description
Photonic Universe ● Solar Control
Remote IR Programmer for LUX & ARF Series
Wireless Monitoring & Customisation | MPPT Solar Charge Controllers
The Photonic Universe LUX-PRG Remote IR Programmer is an essential accessory designed to unlock the full potential of your compatible LUX series waterproof MPPT solar charge controllers and ARF series lightweight folding solar kits. This device provides effortless wireless control and vital insights, allowing you to monitor performance, customise settings, and optimise your solar energy system for peak efficiency and extended battery life.
With a user-friendly interface and a clear LCD display, this remote programmer eliminates the need for wired connections, bringing all important running data and advanced configuration options directly to your fingertips.
COMPATIBILITY NOTE: Exclusively designed for Photonic Universe LUX series waterproof MPPT solar charge controllers and ARF series folding solar kits.
Key Features
| ▶ Wireless Monitoring — View battery charge, solar voltage, current, and total energy generated without wired connections. |
| ▶ Custom Charging Parameters — Tailor charging settings to match your specific battery type and energy requirements. |
| ▶ Programmable Load Timers — Set precise schedules for connected DC appliances, optimising energy usage. |
| ▶ Adjustable Dimmers — Control light intensity for compatible DC appliances, ideal for custom lighting setups. |
| ▶ Large Backlit LCD — Ensures clear readability of data and settings, even in low-light conditions. |
| ▶ Built-in Emergency Light — Provides added convenience and safety for adjustments in the dark. |
| ▶ Automatic Sleep Mode — Conserves battery life by entering sleep mode after a period of inactivity. |
Technical Specifications
| Parameter | Value |
|---|---|
| Batteries Required | 2x AA (not included) |
| Self-consumption (On) | 6mA |
| Self-consumption (Transmitting) | 20mA |
| Self-consumption (Sleep Mode) | 6uA |
| Self-consumption (Emergency Light On) | 15mA |
| Self-consumption (Backlight On) | 7mA |
| Maximum Range | 8 metres |
| Size (L x W x H) | 120 x 65 x 20 mm |
| Weight | 92 g (excluding batteries) |
Advanced Control & Monitoring
This remote programmer goes beyond basic monitoring, offering advanced control capabilities for compatible Photonic Universe LUX series controllers. It fully supports a 5-stage load timer with a dimmer function, allowing for sophisticated management of connected DC loads, particularly for lighting applications.
| Function | Description |
|---|---|
| Real-time Data Display | Provides instant readouts of battery charge, solar panel voltage, current, and total energy generated. |
| Battery Type Selection | Allows selection of appropriate charging profiles for various battery chemistries (e.g., Sealed, Gel, Flooded, Lithium). |
| 5-Stage Load Timer | Enables setting up to five adjustable time slots for DC load operation after sunset. |
| Dimmer Function | Offers 0-100% power adjustment for dimmable DC appliances within each load timer stage. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Cabins & Sheds | Remotely monitor and adjust solar charging and DC lighting for standalone power systems. |
| Motorhomes & Caravans | Conveniently check battery status and customise load settings for mobile solar setups. |
| Marine & Boating | Ideal for monitoring and controlling solar systems on boats, especially with waterproof controllers. |
| Portable Solar Kits | Enhances the functionality of ARF series folding solar kits by enabling full programming and monitoring. |
Compatibility Information
This Remote IR Programmer (LUX-PRG) is specifically designed for and compatible with the following Photonic Universe MPPT controllers and folding solar kits:
-
LUX Series Waterproof MPPT Solar Charge Controllers:
- LUX1012WP
- LUX1012WP-LI
- LUX1524WP
- LUX1524WP-LI
-
ARF Series Lightweight Folding Solar Kits:
- ARF-FWP-80M
- ARF-FWP-100M
- ARF-FWP-120M
Common Questions
What data can I monitor with this programmer?
You can view essential real-time data including battery charge estimates, solar panel voltage, current, and the total energy your system has generated.
Can I use this remote with other brands of solar charge controllers?
No, this Remote IR Programmer is specifically designed for and compatible only with the Photonic Universe LUX series waterproof MPPT solar charge controllers and ARF series lightweight folding solar kits listed in the compatibility section.
What type of batteries does the remote require?
The remote programmer requires 2x AA batteries, which are not included with the unit.
How does the 5-stage load timer and dimmer function work?
For compatible LUX series controllers, you can set up to five distinct time slots after sunset, each with an adjustable power output from 0-100% for dimmable DC appliances. This is ideal for customising evening lighting.
Usage Notes
- Ensure the remote has fresh 2x AA batteries installed for optimal performance.
- Point the remote directly at the IR receiver on your compatible LUX series controller or ARF folding solar kit for reliable communication.
- Operate within the maximum range of 8 metres for effective signal transmission.
- Refer to your specific controller's user manual for detailed guidance on programming advanced features.
Before You Buy
- Verify Compatibility: Confirm your solar charge controller or folding solar kit is a Photonic Universe LUX series waterproof MPPT model or an ARF series kit as listed.
- Check Model Numbers: Double-check the exact model number of your existing equipment against the compatibility list provided.
- Intended Use: This remote is for programming and monitoring; it does not function as a standalone solar charge controller.
- Battery Requirement: Remember to purchase 2x AA batteries separately, as they are not included.
Please ensure compatibility with your specific Photonic Universe LUX series controller or ARF folding solar kit before purchase. Specifications are subject to change by the manufacturer.
